Product Detail

AP-039

AP-039
Product details

1. Usage

AP-039 motors timing resistance of air-condition fan in auto is used for motors timing,and it can be adjusted for four grade,which have overheat protection.

2. Service Conditions

1. Relative humidity:<=98%
2. Atmospheric pressure:86-106KPA
3. Ambiect temperature:-25-80℃
4. Working position:anywhere

3. Main Specifications

1. resistance

-
first grade
second grade
third grade
fourth grade
resistance(ohm)
0
0.4
1.4
3

2. rated voltage: 12V
3. insulation resistance: 500V 100M ohm
4. Dielectric withstand voltage:Normal:1500V

4. Assemble Dimension

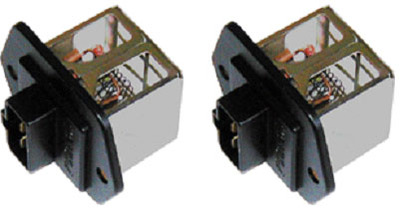

5.Overall Picture
