1. Usage
AP-038 break power switch is used for turning on/off power and protecting contecting control in instruments ,meters and other electric devices.This switch combined normal power switch with relay,when give a pulse to winding,main contractor will be cut power and protect circuit.
2. Service Conditions
1. Relative humidity:<=98%
2. Atmospheric pressure:86-106KPA
3. Ambiect temperature:-40-80℃
4. Working position:anywhere
3. Main Specifications:
1. Contractor formal:1H
2. Rated load :Resistance nature: 125,250VAC,16A
3. Contact resisance:<=50 M ohm
4. Insulation resistance :Normal temperature and humidity >=100M ohm
Heavy humidity>=2M oh5m
5.Dielectric withstand voltage:Normal:1500V AC
6. Weight: 20 g
7.Winding Voltage:9V,12V,24V,48V,220V.
4. Assemble Dimension

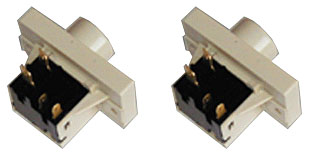

5.Overall Picture
