1. Usage
AP-031 thermal relay is the feeling temperature relay??which have small volume,high power,and which is mainly used for the overheat protection and controlling temperature in electric devices.
2. Service Conditions
1. Relative humidity:<=100%
2. Atmospheric pressure:86-106KPA
3. Ambiect temperature:0-200℃
4. Working position:anywhere
3. Main Specifications:
1. Contractor formal:1D,1H
2. Rated load :Resistance nature 220V 10A;
3. Contact resisance:<=100M ohm
4. Insulation resistance :Normal temperature and humidity >=100M ohm
Heavy humidity>=2M ohm
5. Dielectric withstand voltage:Normal:1500V A
6.Weight:10g
4. Specification parameters
The rang of the acting temperature | The error of the acting temp | The error of the resetting temp (Lower more 10℃ than the acting temp) | Testing way and the rate of rising temp |
-20-200℃ | ±5℃ | UP 10℃ | Tested by copper or dry box(1℃/2 min) |
5.Order Specification Notes
AP031 | 1D | 100℃ |
TYPE | Contact formal1 D- move(close)1 H- move(break) | the acting temperature |

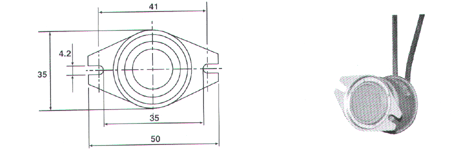

6.Overall and Dimension
