1. Usage
This product is mainly used for controling the temperature of air conditioning in auto.
2. Service Conditions
1. Relative humidity:<=98%
2. Atmospheric pressure:86-106KPA
3. Ambiect temperature:-40-100℃
4. Working position: anywhere
3. Main Specifications:
1. Contactor formal : 1H
2. Rated load:Resistance nature 12V 24V 5A
3. Contact resistance:<=20M ohm
4. Insulation resistance : Normal temperature humidity >=100M OHM
Heavy humidity >=2M OHM
5. Dielectric with stand vdtage:Normal:550VAC
6. Acting temperature:<=10℃
7. Disconnect temperature:>=1.7℃
8. Difference between acting and disconnecting temperature:>=1.1℃

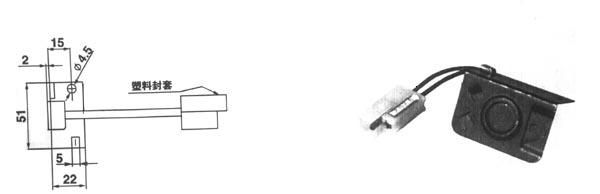

4. Overall and Assemble Dimension
